SPECIFICATIONS

Brand Name: VDIAGTOOL

Certification: CE

Electronic: No

External Testing Certification: ce

Hardware Version: 2025

Hign-concerned Chemical: None

Item Height: 4

Item Length: 10

Item Type: Electrical Testers & Test Leads

Item Weight: 0.3

Item Width: 8

Material: plastic

Model Name: VDIAGTOOL V210

NOTE: The set does not include 2pcs 9V batteries.

Origin: Mainland China

Power (W): w

Software Update: Yes

Software Version: 2025

V210 Feature 1: Automotive Circuit Tester

V210 Feature 2: Short Open Finder

V210 Feature 3: Tracker Analyzer Tool

V210 Function 1: Adjustable sensitivity

V210 Function 2: Short Circuit

V210 Function 3: Open Circuit

V210 Function 4: Wire Tracing

V210 Function 5: Cable Tracker

Voltage: v

Voltage range: 6V-42V

Warranty: 1 year warranty

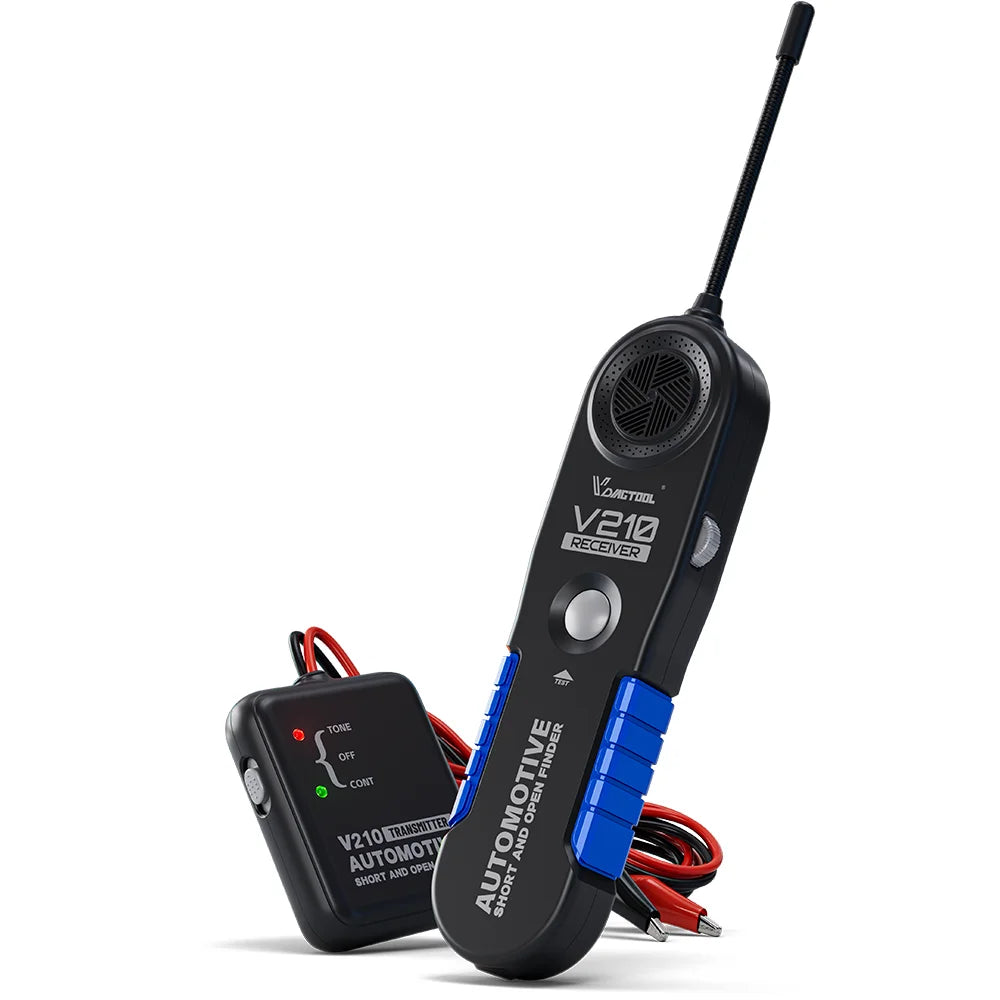

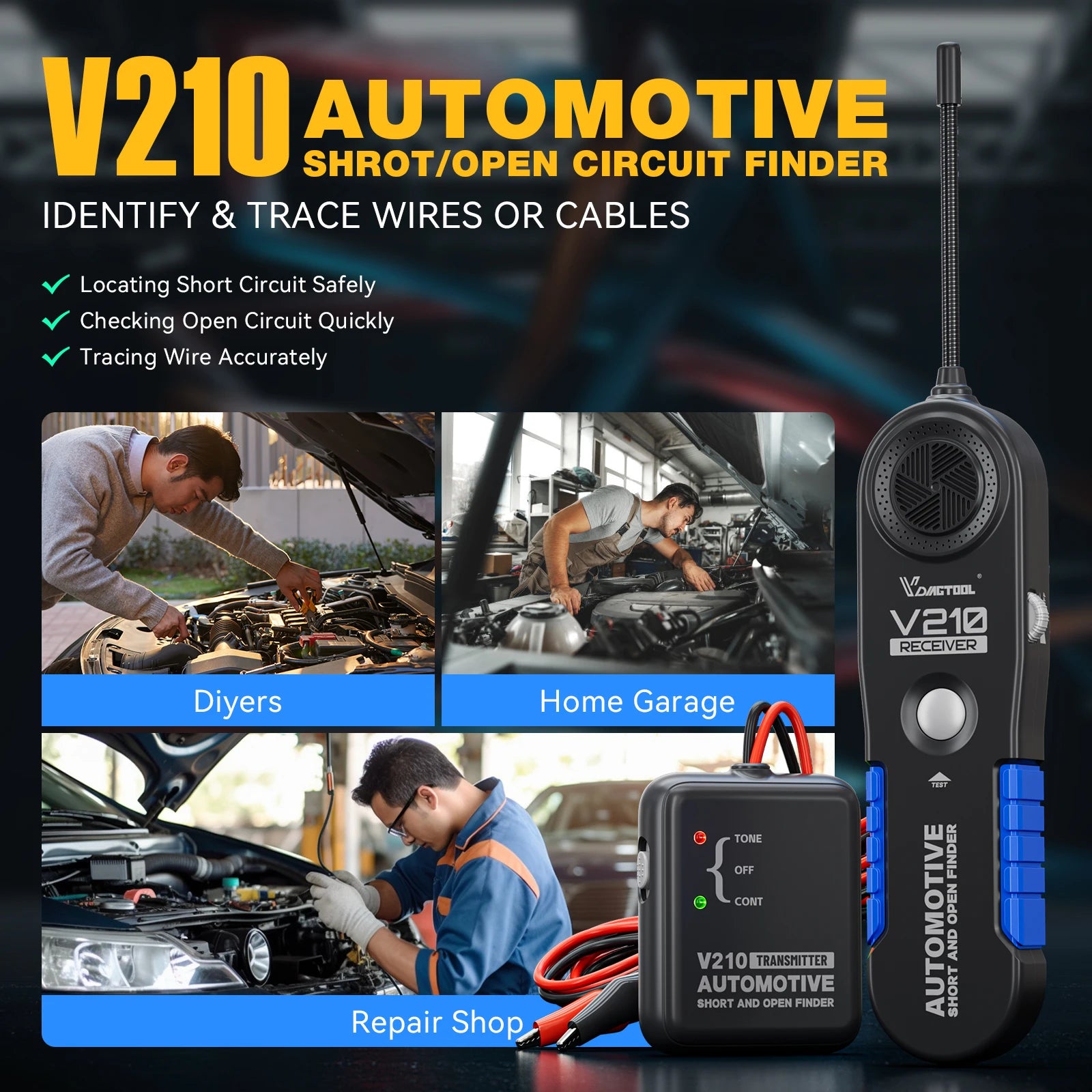

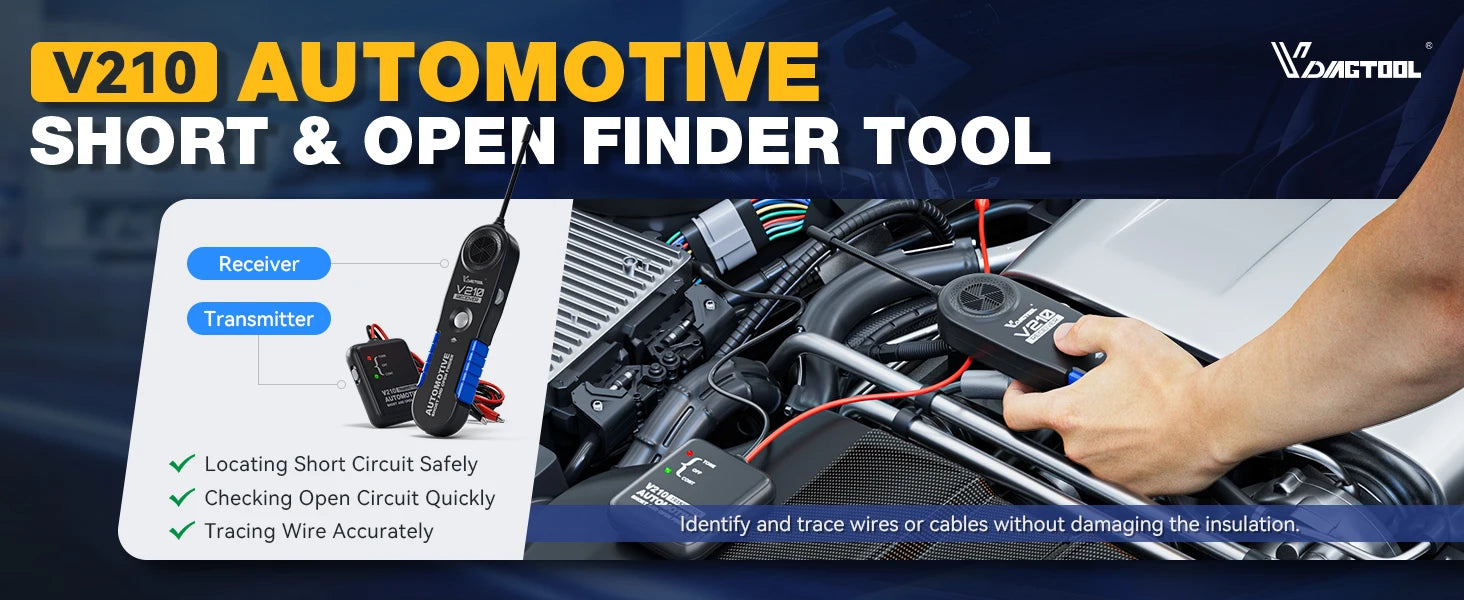

VDIAGTOOL V210 short & open finder tool is an advanced automotive diagnostic tool designed to efficiently locate short circuits, check open circuits, and trace wires with precision. Its non-invasive technology ensures accurate identification of wire and cable issues without damaging the insulation, making it an essential tool for automotive professionals and enthusiasts.

✔ Locating Short Circuit Safely

✔ Checking Open Circuit Quickly

✔ Tracing Wire Accurately

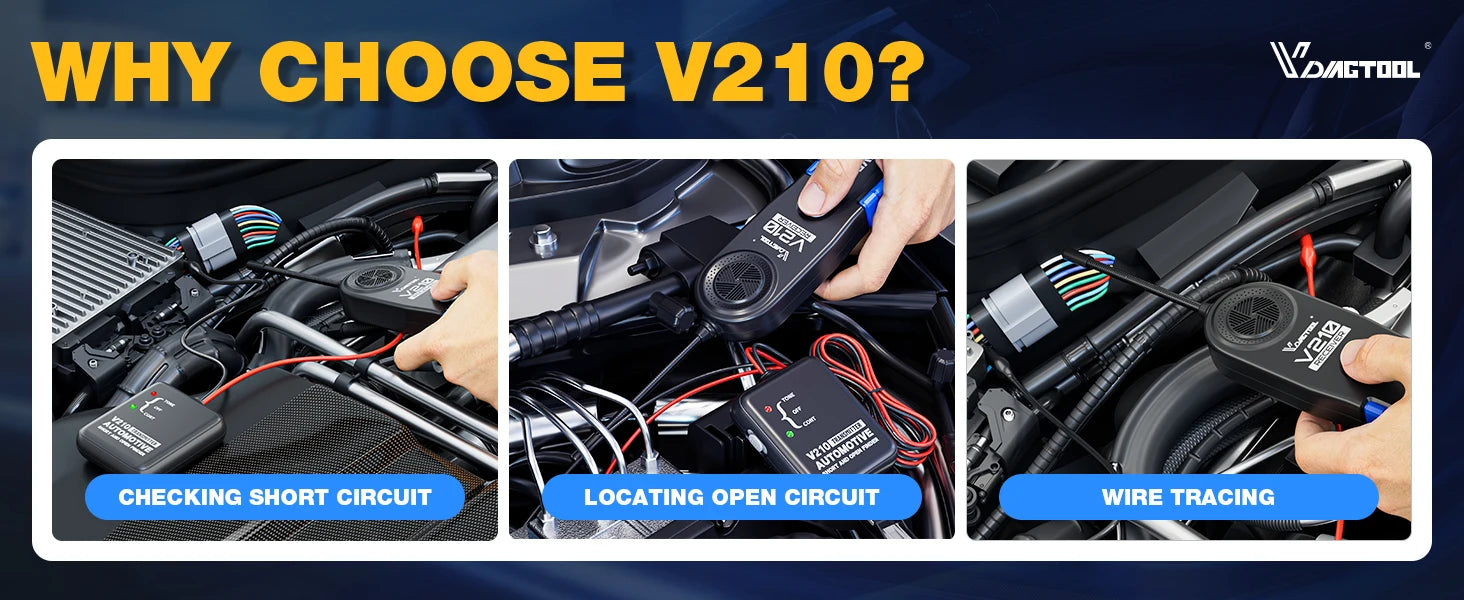

Why Choose V210 Circuit Tester？

1. Checking Short Circuit : Identifying an unintended low-resistance connection between two points in an electrical circuit, causing excessive current flow.

2. Locating Open Circuit : Finding a break or discontinuity in a circuit that interrupts current flow (e.g., a broken wire or loose connection).

3. Wire Tracing : Following the path of a specific wire or cable within a complex harness or system.

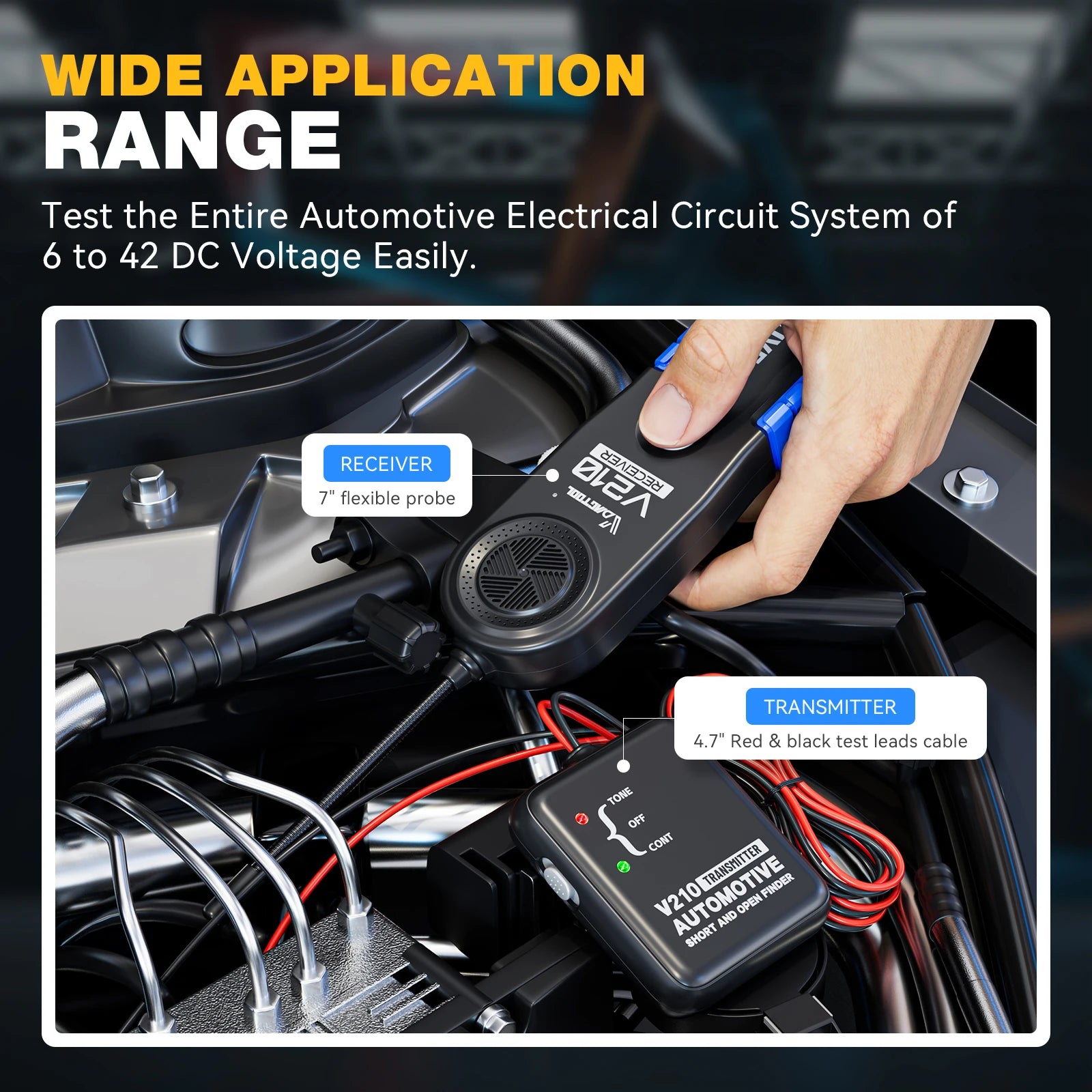

VDIAGTOOL V210 Tester Offers Wide Compatibility

upporting DC 6-42V electrical systems across various vehicles and equipment.Support automobiles, trucks, tractors, boats, RVs

✔ Works with 6-42V DC systems

✔ Suitable for diverse vehicle types

✔ Simplifies electrical diagnostics

✔ Saves time and effort in repairs

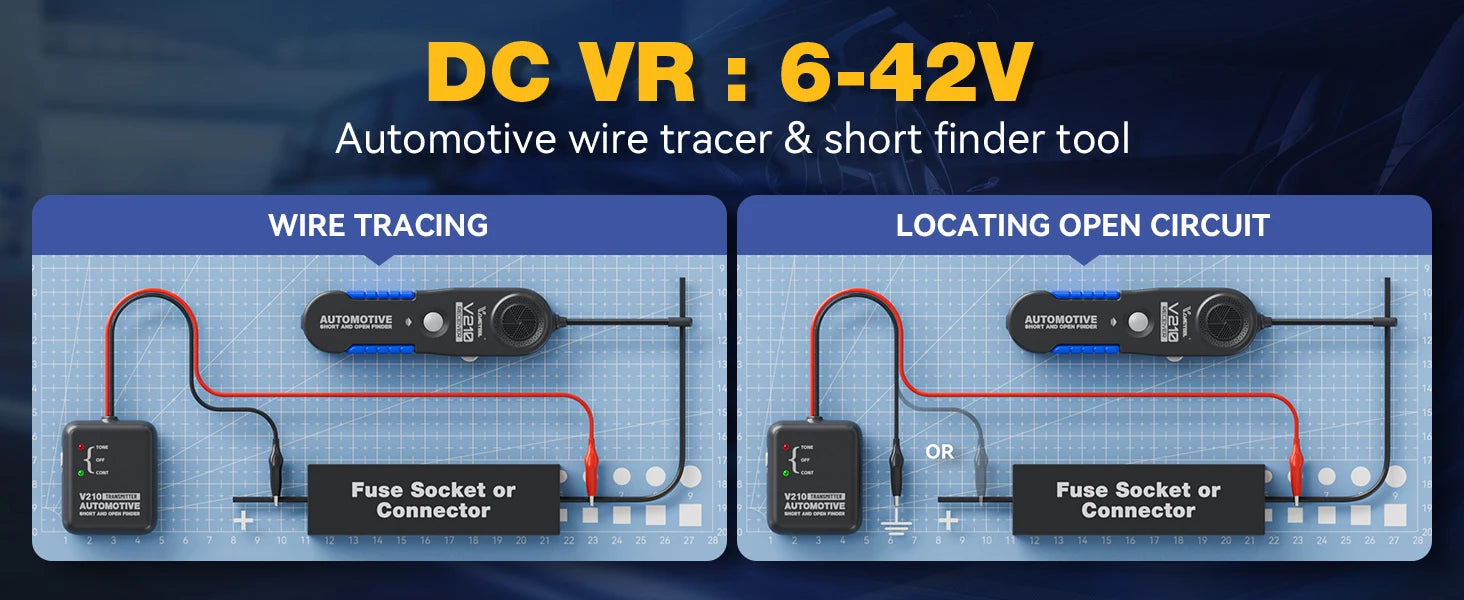

VDIAGTOOL V210 Automotive Wire Tracer and Short Circuit Finder, Designed to Work with 6-42V DC Electrical Systems.

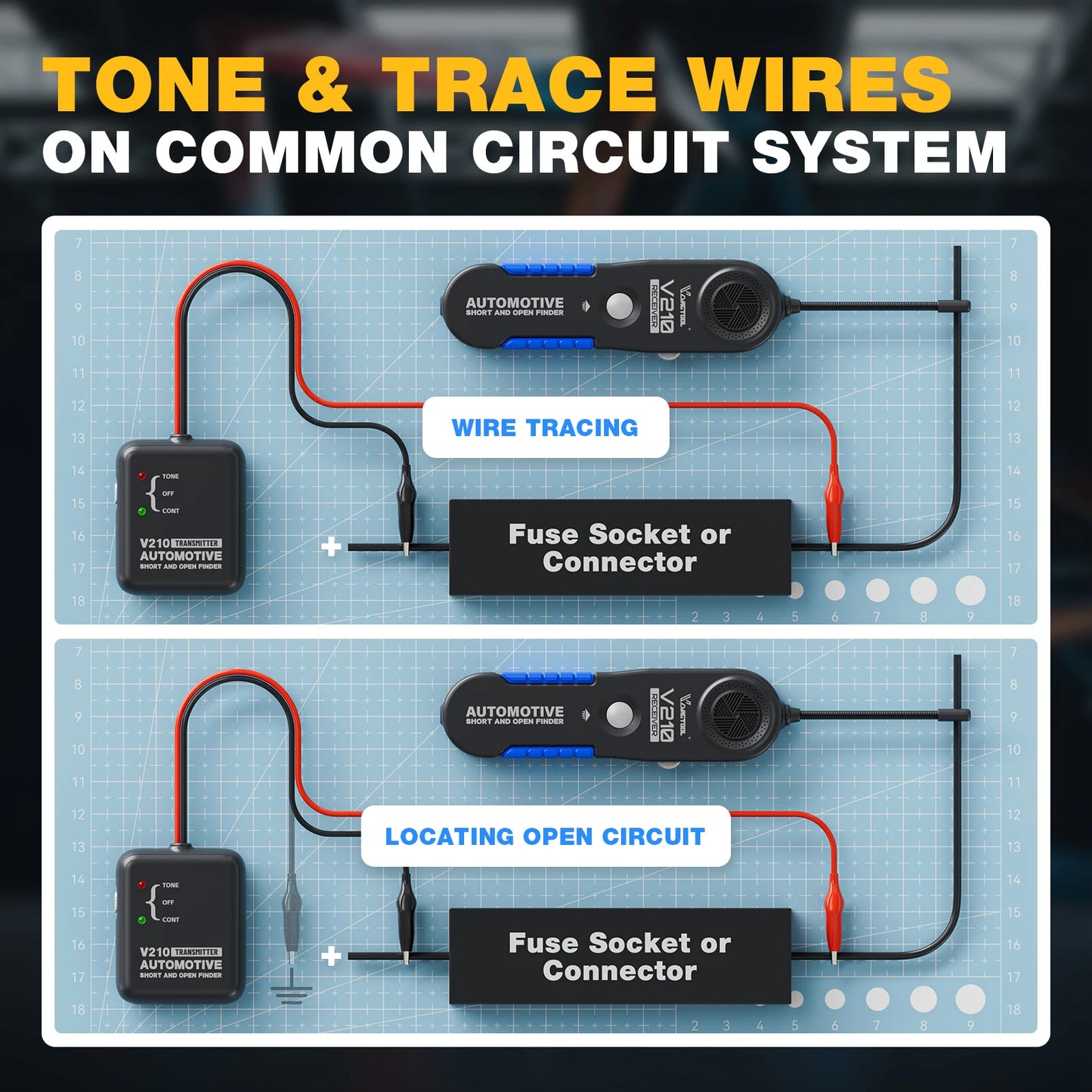

Wire Tracing: Accurately track wire paths without damaging insulation.

Open Circuit Detection: Quickly identify breaks or disconnections in wiring.

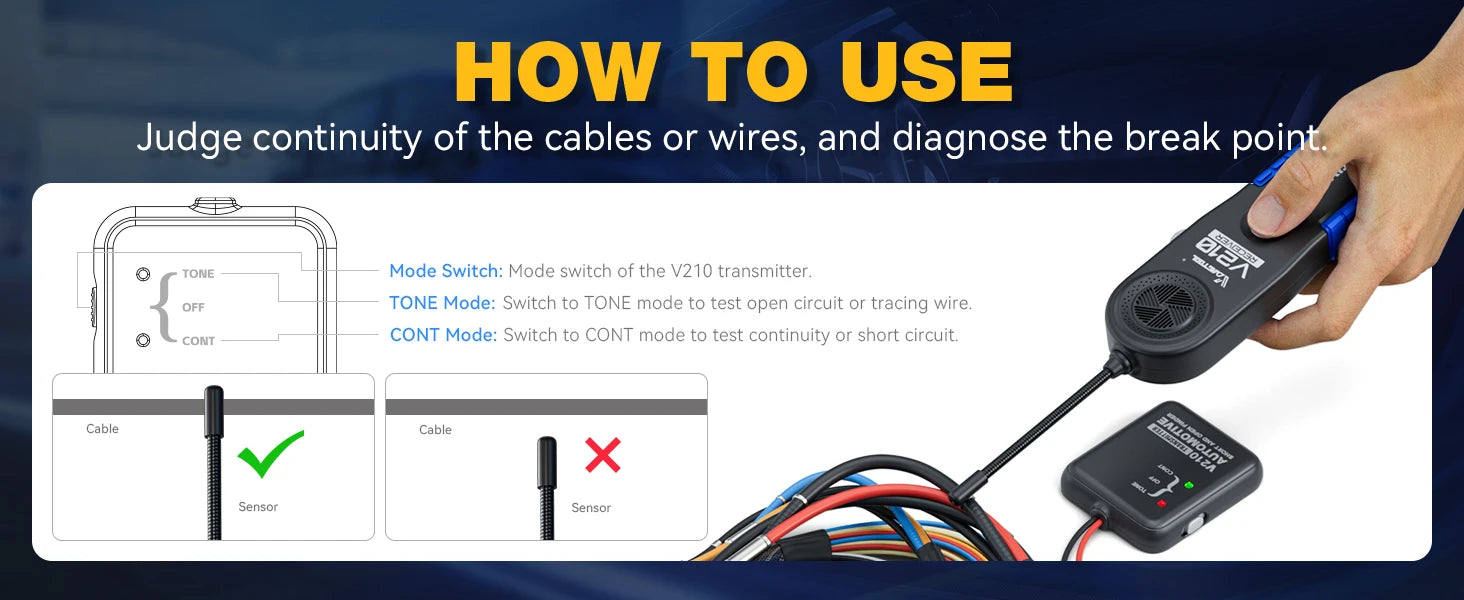

VDIAGTOOL V210 Tracker Analyzer Tool User Guide Summary

Step-by-step usage:

1. Power On – Turn on the V210 transmitter and select the desired mode.

2. Select mode:

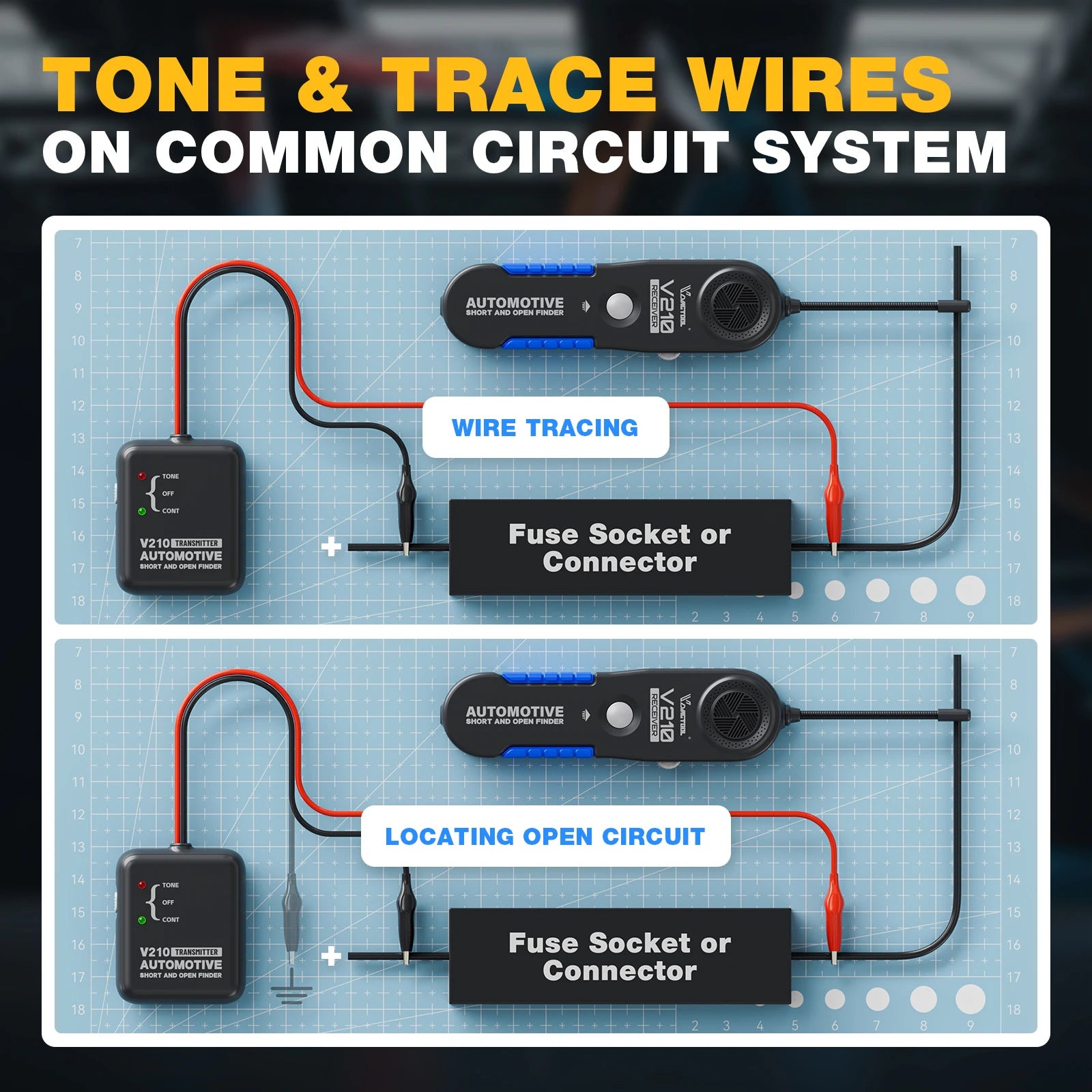

• TONE mode – Use for open circuit detection or wire tracing.

• CONT mode – Use for continuity checks or short circuit testing.

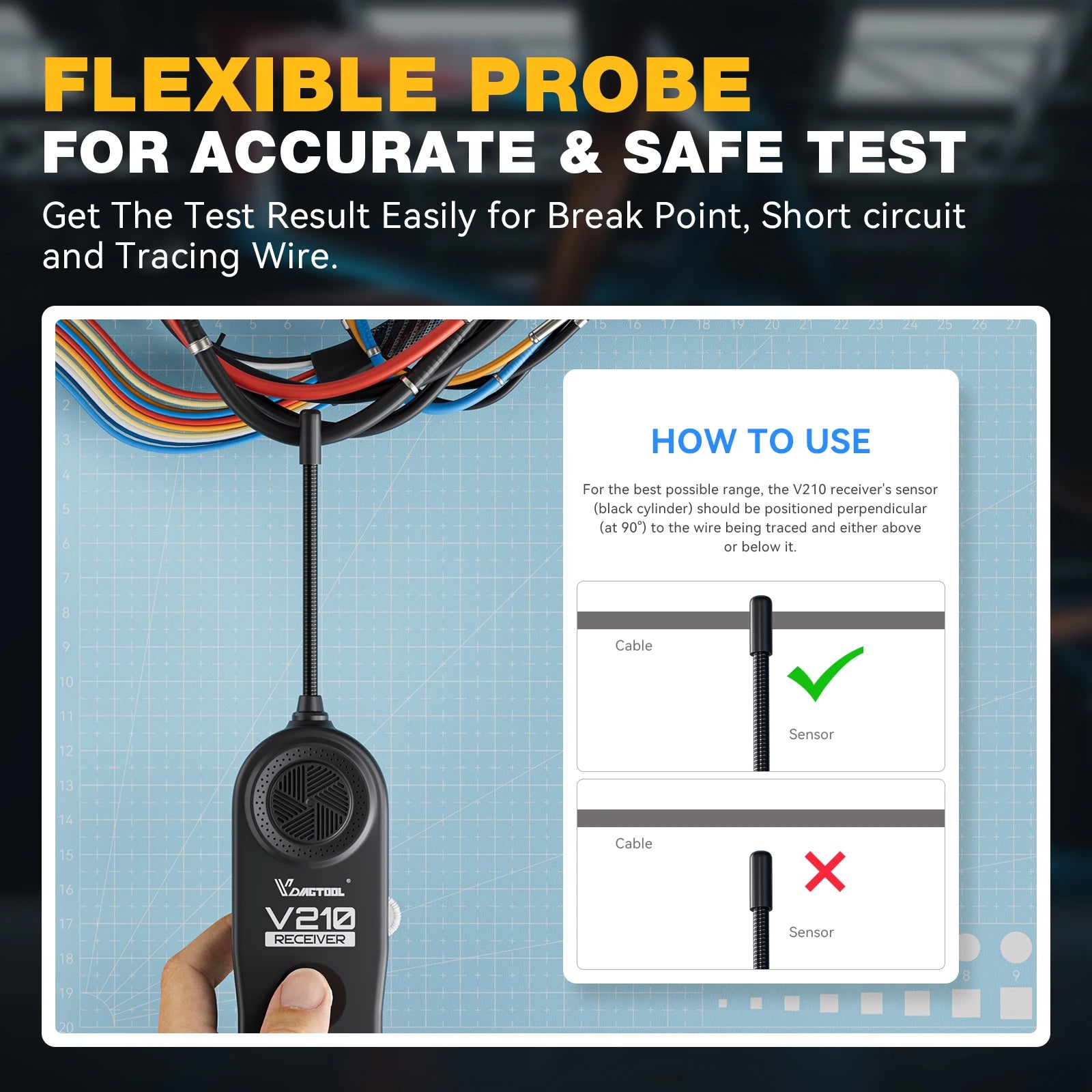

3.Connect sensors – Attach the probes or clamps to the wire/cable being tested.

4.Diagnose – The tool will indicate breaks (open) or unintended connections (short).

Key features:

✔ Dual-mode functionality – Switch between TONE (tracing) and CONT (continuity/shorts).

✔ Easy breakpoint detection – Quickly locate faults in wiring.

✔ Versatile testing – Works on cables, connectors, and fuse sockets.

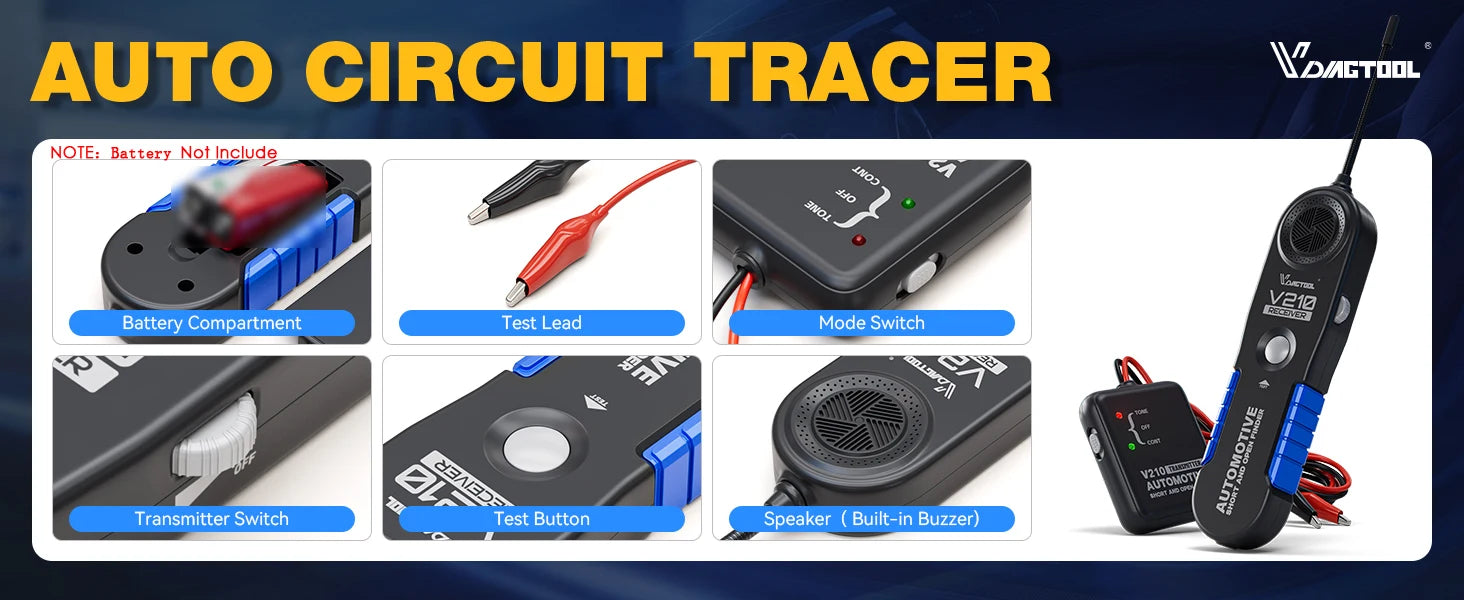

VDIAGTOOL V210 Auto Circuit Tracer Key Components

1. Battery Compartment – Houses power source for operation.（battery not include）

2. Test Lead – Connects to wires/circuits for diagnostics.

3. Mode Switch – Toggles between TONE (wire tracing/open circuit) and CONT (continuity/short circuit) modes.

4. Transmitter Switch – Activates signal transmission for circuit analysis.

5. Test Button – Initiates diagnostic checks.

6. Built-in Buzzer (Speaker) – Provides audible alerts for faults (e.g., beeps for shorts/breaks).

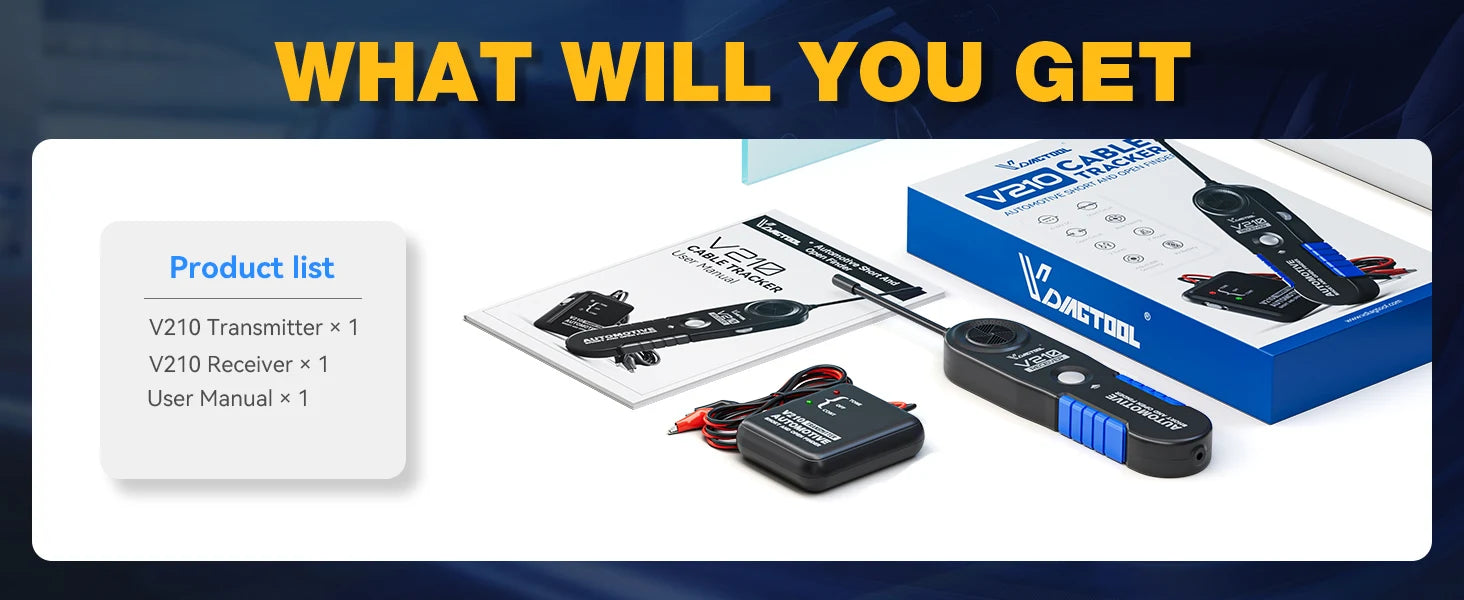

VDIAGTOOL V210 Auto Tester Product List:

V210 Transmitter × 1

V210 Receiver × 1

User Manual × 1
